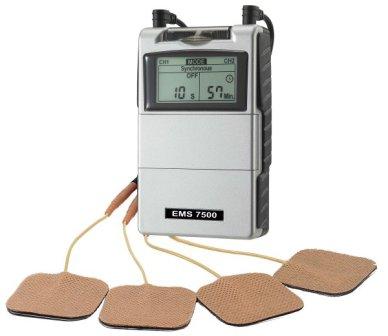

EMS 7500

Digital EMS 7500, Dual Channel w/timer and safety amplitude cover

The EMS unit is designed for personal use; however, it is strong enough to be used in an office setting. The EMS uses very weak electrical impulses to contract and relax muscles. It produces "passive" exercise by sending electrical impulses or signals to the selected muscle or muscle groups to contract and relax them. The E.M.S. can relax a "tense", "tight" or spasmodic muscle. Common candidates for EMS include those in high stress situations who experience muscle tension in the upper back and neck areas, and those who suffer from chronic tension headaches. The EMS will increase motion, range and response of muscles restricted from disuse or from atrophy from another cause. It is helpful following activity restrictions, such as after surgery or being in a cast. It is also helpful at increasing local blood circulation. The EMS is portable and may be clipped to a belt, shirt pocket, bra or other clothing

EMS 7500 Specifications:
 3 Modes: Synchronous, Constant, Alternate
 Pulse Width: 50~300 µs, Adjustable
 Pulse Rate: 2~120 Hz, Adjustable
 Pulse Amplitude: 100mA peak into 500 ohm load
 Voltage: 0-50V (Load: 500 ohm)
 Ramp: 1~8 s
 Contraction Time (On Time): 2~90 seconds
 Relaxation Time (Off Time): 2~90 seconds
 Wave Form: Asymmetric biphasic square pulse
 Timer: 5~60 mins or continuous. Final count down indicator: during final 5 mins, the clock symbol will flash in one sec
 Patient Compliance Meter: Memorize 60 sets of operation records Total recorded time is 999 hours
 3 Years Manufacturer Warranty
 System Includes: Stimulator, Lead Wires, 4 Self-Stick High Quality Premium Electrodes, 9V Battery, Hard Plastic Carrying Case, Instruction Booklet.

Click to View EMS 7500 Manual:
