InTENSity™ 5000 Hybrid

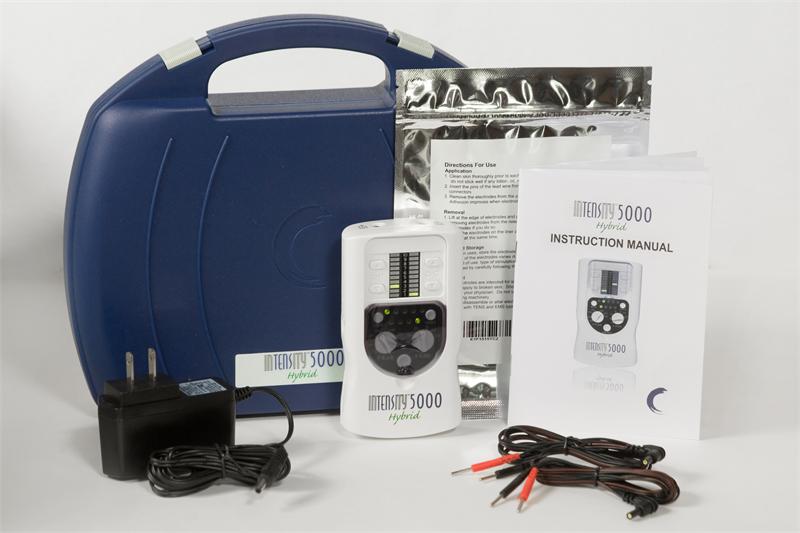

You have never seen a TENS device like this one! Is it digital? Is it analog? It is both! This device combines the ease of traditional knobs with the beauty of LED technology to give the user the feedback they need to get the right therapy at the right time. The InTENSity™ 5000 Hybrid has 5 modes and a timer, comes in a hard case with electrodes, user manual, lead wires and 9-volt battery.

Channel: Dual, isolated between channels
Power Supply: One 9-volt battery. AC Adapter is available for an Additional $5.00 on the drop down option
Amplitude Adjustable, 0-80 mA, peak into 500 ohm load each channel
Pulse Rate: Adjustable, from 2 to 150 Hz Burst rate: 0.5Hz (Burst mode)
Pulse Width: Adjustable, from 30-260 microseconds
Voltage: 0 to 40 V (Load: 500 ohm)
Wave Form: Mono-phase square pulse wave
Size: 11.7 cm (L) x 6.6 cm (W) x 28.5 cm (H)
Weight 94 g (without battery)
Timer: 15, 30, 60 minutes or continuous
5 Modes:
Burst: (B) Bursts occur twice every second. Pulse width (adjustable), pulse rate=100 Hz, Burst rate=0.5 Hz
Normal Mode: (N) The pulse rate and pulse width are adjustable. It generates continuous stimulation based on the setting value.
Modulation 1: mode (M1) Modulation 1 mode is a pulse width modulation. The pulse width is automatically varied in a cycle pattern over an interval of nominally 10 seconds. Pulse width increase over a period of 5 seconds from 30 us to the control setting value, then decreases over a 5 second period to its original value.
Modulation 2: mode (M2) Modulation 2 mode is a pulse rate modulation. The pulse rate is automatically varied in a cycle pattern over an interval of nominally 10 seconds. Pulse rate decreases over a period of 5 seconds from the control setting value to a value which is 40% less, then increases over a 5 second period to its original value. They cycle is then repeated.
SD mode: (SD) The SD (Strength-Duration) mode consists of automatic modulation intensity and pulse width in 70% range. The intensity is always while the pulse width is decreasing and vice versa. The intensity is decreased by 70% while the pulse width is increased by 70% in 5 seconds. In the next 5 seconds, the intensity is increased by 70% while the pulse width is decreased by 70%. Total cycle time is 10 seconds. Pulse rate (2~150Hz) and pulse width (30~260uS) are fully adustable
